Customised burner solutions can also be supplied in addition to the standard versions listed below. Only with the right equipment can energy consumption be reduced, quality improved and production increased.

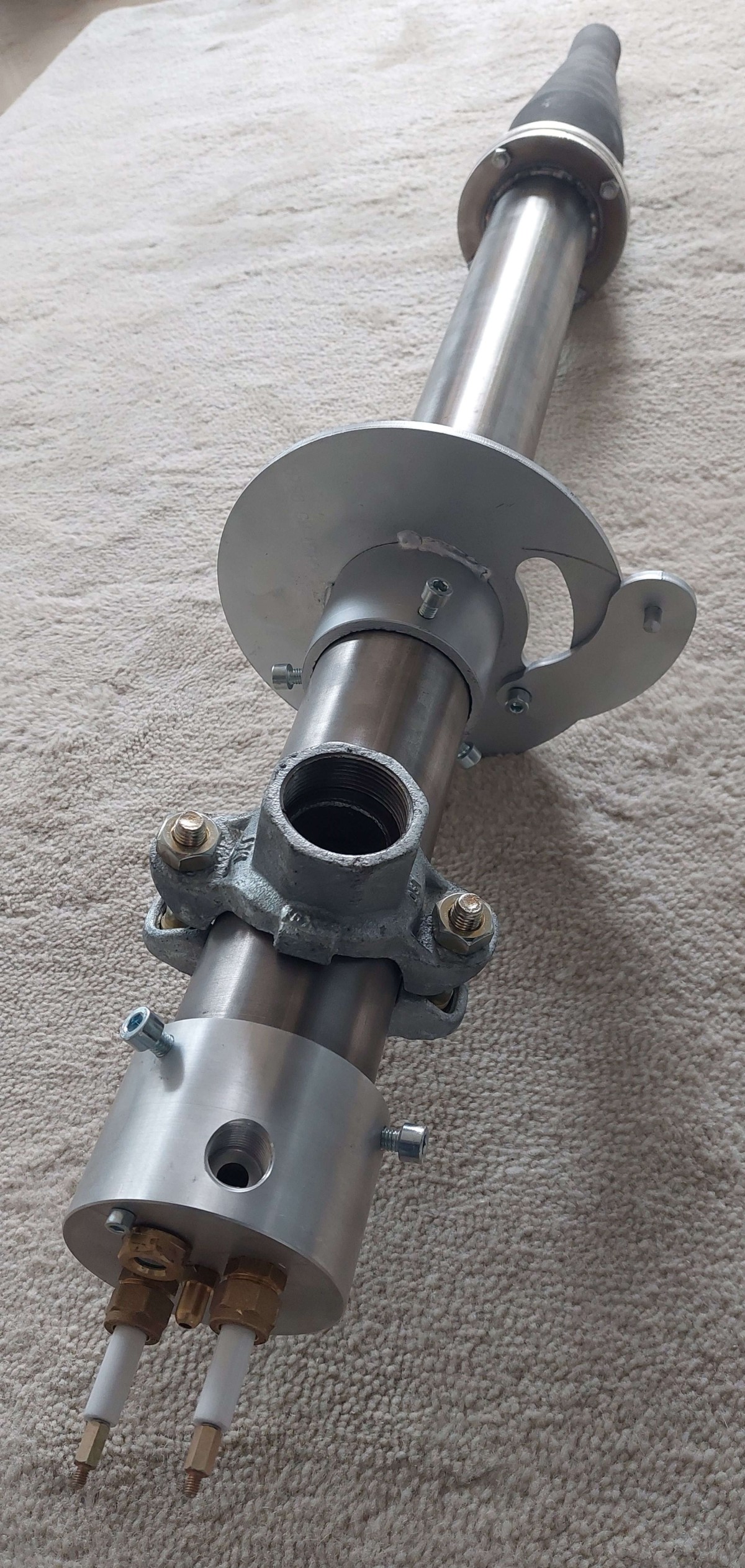

G+M Hochgeschwindigkeitsbrenner: HG Typ 76-G / F

G+M high-speed burner: HG Type 76-G / F

Burners for Heating Industrial Kilns

Developed especially for heavy clay production
Ignition / burner start possible under full load
Generates high turbulence and even temperature distribution
Suitable for high brick loads
Can be used as a top or side burner

Operation: ON - OFF mode / full - partial load mode / pulse mode.

Burner tube made of steel, flanged combustion chamber made of SIC ceramic, graduated burner output according to local requirements.

Technical Data:

Fuel: Natural gas / Liquefied gas
Burner output:

up to 150 kW / SIC Type 50
up to 100 kW / SIC Type 40
up to 70 kW / SIC Type 30

Gas pressure at burner: 5 to max. 120 mbar
Air pressure at burner: 5 – 30 mbar

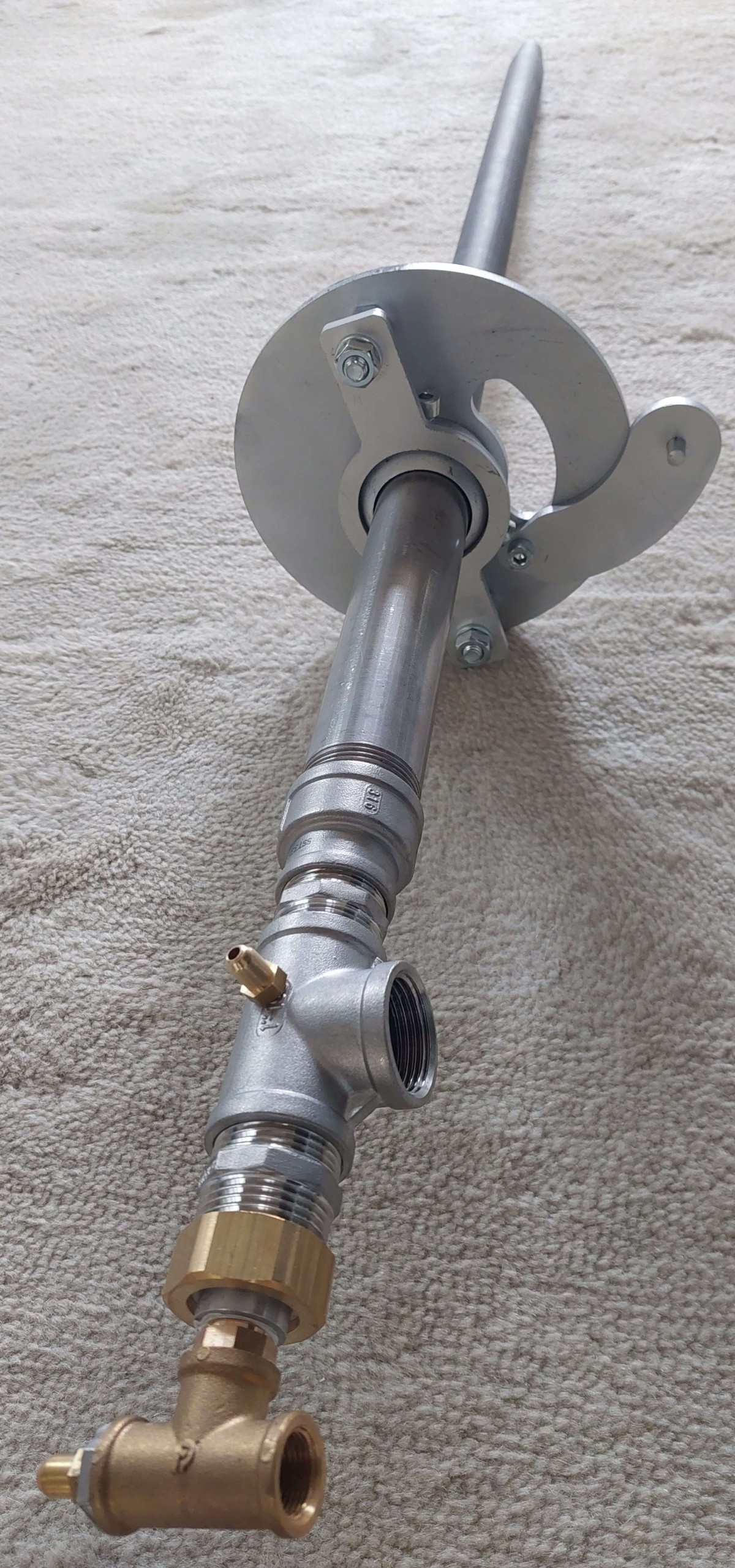

G+M Universal Injektorbrenner: Ausführung Typ 33-SIC/SIC-G

G+M Universal Injector Burner: Model Type 33-SIC / SIC-G

Burner for heating industrial kilns, specially developed for coarse ceramics production.

Generates high turbulence and uniform temperature distribution
Suitable for high brick loading
Can be used as ceiling or side burner
Designed for extended service life in corrosive, sulfur-containing kiln atmospheres

Burner tube including nozzle made of SiC ceramic

Technical Data:
Fuel: Natural gas / Liquefied gas / Light to heavy fuel oil
Burner output: max. 70 kW
Gas pressure at burner: up to 500 mbar
Air pressure at burner: 5 – 80 mbar

Installation:
No flame monitoring required above 750°C (temperature in combustion channel)
Guidelines according to EN 746-2

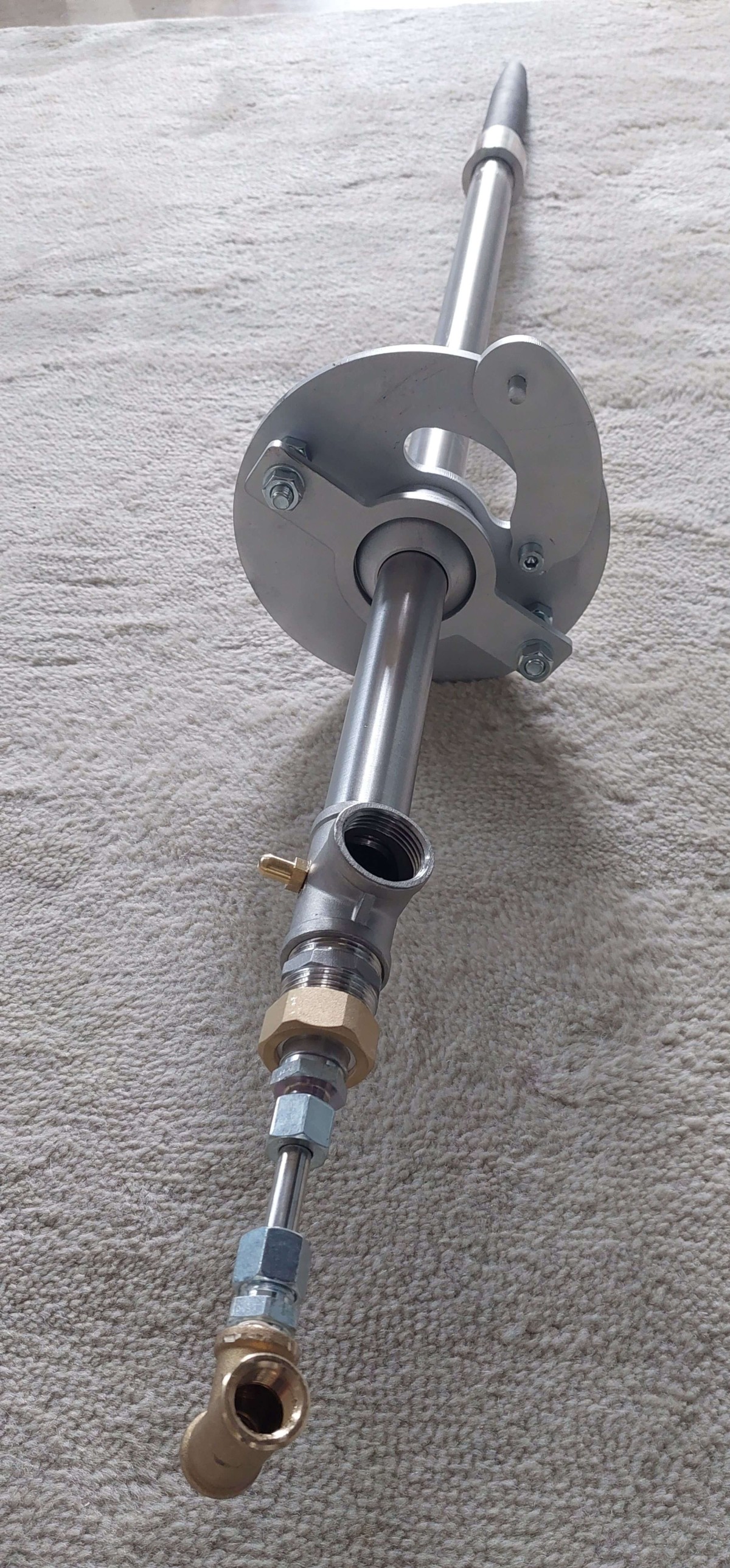

G+M Universal Injektorbrenner: Ausführung Typ 33-ST/SIC-G

G+M Universal Injector Burner: Model Type 33-ST / SIC-G

Burner for heating industrial kilns

Specifically developed for coarse ceramics production.
Produces high turbulence and uniform temperature distribution
Suitable for high brick loading
Can be used as ceiling or side burner

Burner nozzle made of SiC ceramic, burner tube made of stainless steel

Technical Data:
Fuel: Natural gas / Liquefied gas / Light to heavy fuel oil
Burner output: max. 70 kW
Gas pressure at burner: up to 500 mbar
Air pressure at burner: 5 – 80 mbar

Installation:
No flame monitoring required above 750°C (temperature in combustion channel)
Compliant with EN 746-2 guidelines

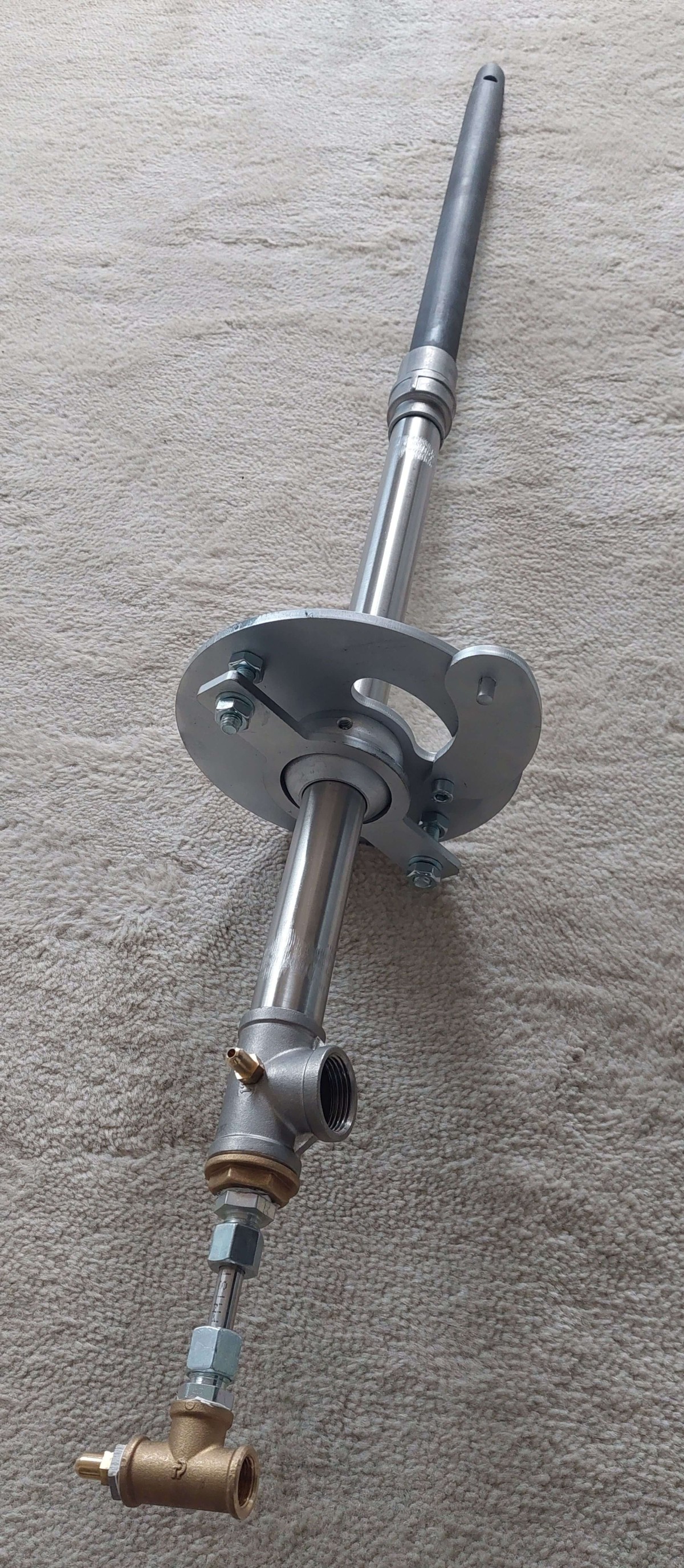

G+M Universal Venturi Ausführung Typ 33-ST/SIC-G

G+M Universal Venturi Burner – Model Type 33-ST / SIC-G

Burner for heating industrial kilns

Specifically developed for coarse ceramics production.
Generates high turbulence and uniform temperature distribution
Can be used as ceiling or side burner

Operation: ON–OFF / Pulse mode
Burner tube made of steel, extended Venturi burner nozzle made of SiC ceramic
Energy savings through utilization of existing hot air in the combustion channel

Technical Data:
Fuel: Natural gas
Burner output: max. 70 kW
Gas pressure at burner: up to 1.5 bar (depending on nozzle bore)
Air pressure at burner: 2 – 10 mbar

Installation:
No flame monitoring required above 750°C (temperature in combustion channel)
Compliant with EN 746-2 guidelines
